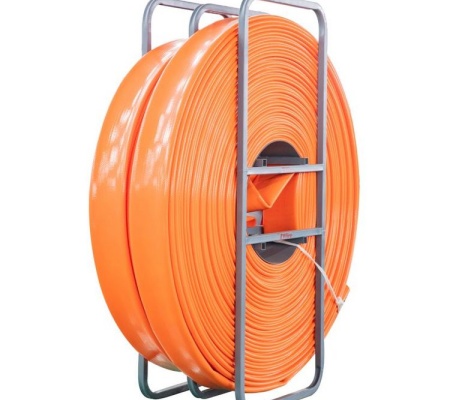

TPU Layflat Umbilical Slurry Hose is one type of super heavy-duty through-the-weave polyurethane (PU/TPU) covered hose. Manureflow hoses shall be made from 100% high tenacity synthetic yarn circular woven and completely, totally embedded in the PU compound, excellent protected against mechanical damage, forming a single homogenous construction without the use of any glues or adhesives of any type.
Through-the-weave TPU Hose
Cover and Lining: TPU, Ribbed cover or smooth cover
Reinforcement Jacket: High tenacity synthetic jacket.

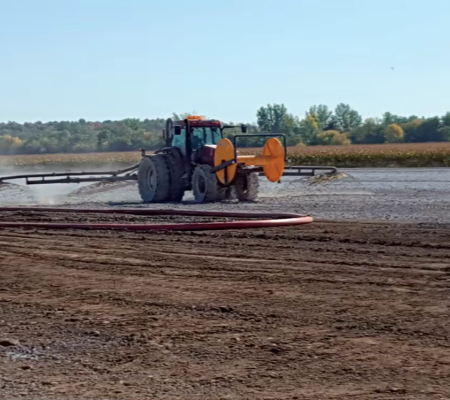

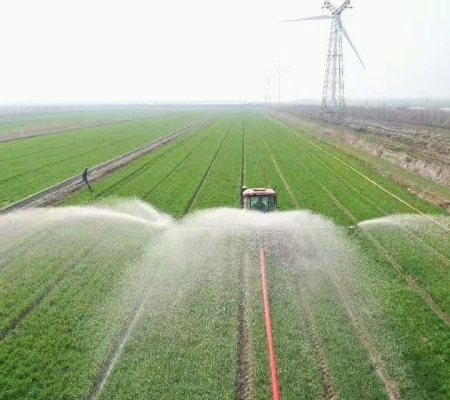

Application: Irrigation, Sludge discharge, Liquid fertilizers discharge, Supply or Drag hose.
Standard length: 30m (100ft), 61m (200ft), 91.5m (300ft), 100m (330ft), 200m (660ft), 300m (990ft), 400m (1320ft).
| I.D. | Tolerance | Wall Thickness | Service Pressure | Minimum Burst Pressure | Weight | Tensile Strength | ||||
| inch | mm | mm | inch | mm | Bar/psi | Bar/psi | Kg/m | lbs/ft | kgs | lbs |
| 4" | 102 | +2.5 | 0.16 | 4.2±0.3 | 13/200 | 39/600 | 1.6±0.2 | 1.08 | 17550 | 38802 |
| 5" | 127 | +3.0 | 0.17 | 4.5±0.3 | 12/160 | 36/480 | 2.0±0.2 | 1.34 | 22080 | 48943 |
| 5 1/2" | 140 | +3.0 | 0.17 | 4.5±0.3 | 10/150 | 30/450 | 2.3±0.3 | 1.55 | 22770 | 50486 |
| 6" | 154 | +3.0 | 0.18 | 4.6±0.3 | 10/150 | 30/450 | 2.6±0.3 | 1.75 | 27200 | 60296 |
| 7" | 178 | +3.0 | 0.18 | 4.6±0.3 | 10/150 | 30/450 | 3.0±0.3 | 2.02 | 35700 | 79146 |
