10 Inch TPU Layflat Hose

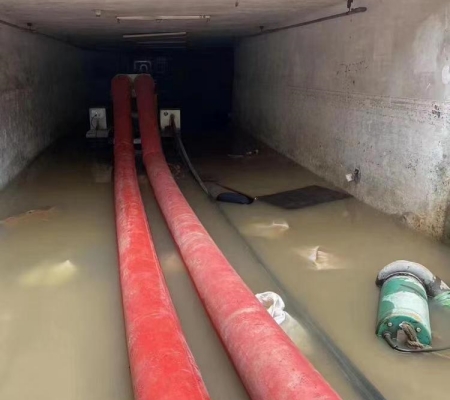

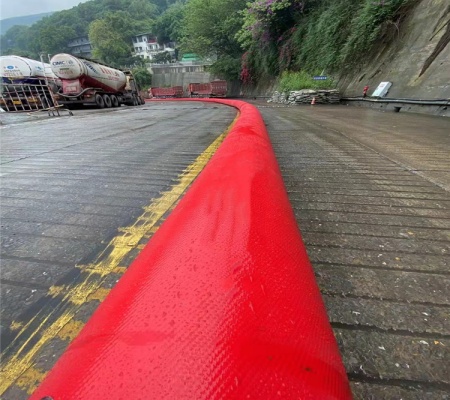

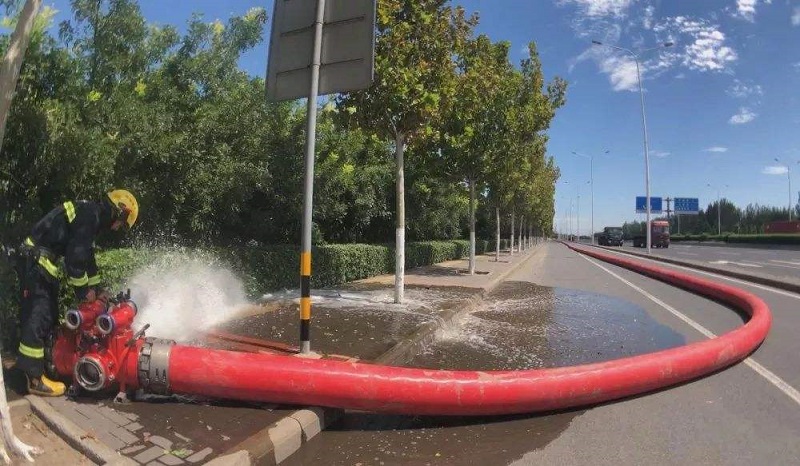

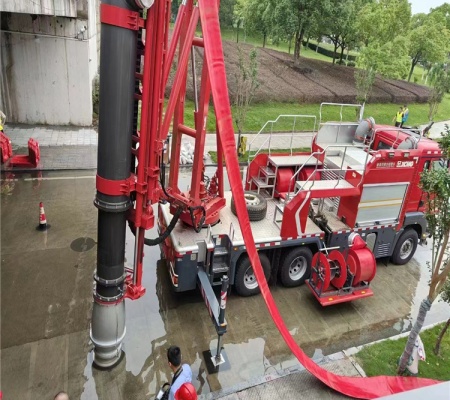

10inch TPU layflat hose is a TPU layflat hose desined for various industries and applications This type of hose is designed to be easily transported, stored, and deployed, making it ideal for emergency response, irrigation, and water transfer projects.

Description：


 10 Inch TPU Layflat Hose is a super heavy-duty through-the-weave polyurethane (PU) covered hose.  The jacket inside the hose shall be made from high tensile synthetic polyester filament yarn,with circular woven method, it will totally be embedded in the PU compound, the covered PU will protect it against mechanical damage, forming a single homogeneous construction without any glues or adhesives of any type between them.Thermoplastic polyurethane (TPU) is extruded “through the weave” in a unique one step production process. This process combined with UV protection additives and ageing-resistant in the compounds makes this transfer hose ideally suited for high abrasion applications in the mining and water transfer/fracking applications.Construction
Construction：
Cover and liner: High quality
Reinforcement: High tenacity synthetic yarn(With copper wires available inside to be anti-static)
Technical Parameters：
Color: green or as required
Size: 2 inch-8 inch
Length: 200m(660ft) or as required
Temperature: -50°C～+80°C(-60°F to 176°F )
Features：
Antistatic, high pressure, oil and chemicals resistance, UV resistance, safe and easy Iinstallation, long service time
Application：
Temporary oil and fuel transfer, army and ship fuel(oil) supply, hydraulic fracturing


ID Tolerance Wall Thickness Service
Pressure 		Minimum
Burst Pressure 		Weight
inch mm mm inch mm psi psi lbs/ft kg/m
2″ 51 51.0-53.0 0.071 1.80 250 750 0.28 0.42
2″ 51 51.0-53.0 0.138 3.50 410 1230 0.47 0.70
3″ 76 76.0-78.0 0.118 3.00 250 750 0.60 0.90
3″ 76 76.0-78.0 0.126 3.20 410 1230 0.70 1.05
4″ 102 102-104.5 0.110 2.80 200 600 0.72 1.08
4″ 102 102-104.5 0.138 3.50 250 750 0.87 1.30
4″ 102 102-104.5 0.142 3.60 300 900 0.94 1.40
4″ 102 102-104.5 0.189 4.80 610 1830 1.27 1.90
5″ 125 125-127.5 0.142 3.60 150 450 1.21 1.80
6″ 152 154-157 0.126 3.20 150 450 1.27 1.90
6″ 152 154-157 0.149 3.80 250 750 1.41 2.10
6″ 152 154-157 0.165 4.20 300 900 1.68 2.50
6″ 152 154-157 0.228 5.80 410 1230 2.28 3.40
6″ 152 154-157 0.216 5.50 610 1830 2.14 3.20
8″ 204 204-207 0.149 3.80 200 600 1.94 2.90
8″ 204 204-207 0.157 4.00 250 750 2.28 3.40
8″ 204 204-207 0.165 4.20 300 900 2.35 3.50
8″ 204 204-207 0.165 4.20 410 1230 2.68 4.00
10″ 254 256-259 0.165 4.20 200 600 2.68 4.00
10″ 254 256-259 0.177 4.50 250 750 3.02 4.50
10″ 254 256-259 0.197 5.00 300 900 3.69

Specifition：
