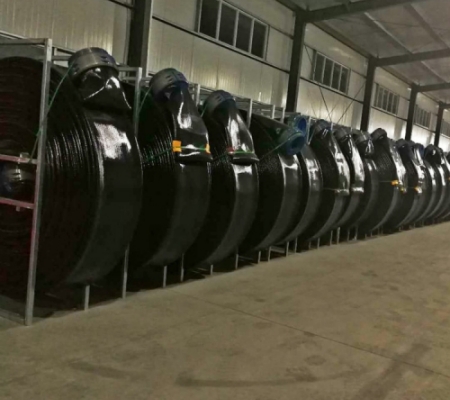

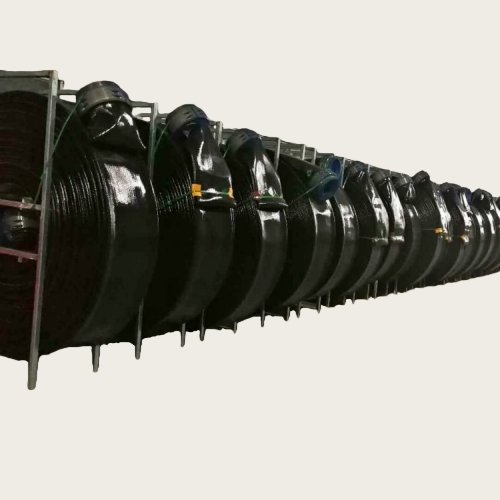

12 Inch TPU Layflat Hose



 12 inch layflat hose is a TPU layflat hose used for a variety of applications. Its large diameter allows for high volume water transfer, making it ideal for agriculture, fire fighting, oil and gas and industrial use. The layflat design allows for easy storage and transportation, as it can be rolled up when not in use.

12 Inch TPU Layflat Hose

Description:

12 inch layflat hose is a TPU layflat hose used for a variety of applications. Its large diameter allows for high volume water transfer, making it ideal for agriculture, fire fighting, oil and gas and industrial use. The layflat design allows for easy storage and transportation, as it can be rolled up when not in use. Its flexibility and strength make it resistant to kinks and punctures, ensuring reliable performance in harsh conditions.

Construction：
Cover and liner: High quality
Reinforcement: High tenacity synthetic yarn(With copper wires available inside to be anti-static)
Technical Parameters：
Color: green or as required
Size: 2 inch-8 inch
Length: 200m(660ft) or as required
Temperature: -50°C～+80°C(-60°F to 176°F )
Features：
Antistatic, high pressure, oil and chemicals resistance, UV resistance, safe and easy Iinstallation, long service time
Application：
Temporary oil and fuel transfer, army and ship fuel(oil) supply, hydraulic fracturing

ID Tolerance Wall Thickness Service
Pressure 		Minimum
Burst Pressure 		Weight
inch mm mm inch mm psi psi lbs/ft kg/m
2″ 51 51.0-53.0 0.071 1.80 250 750 0.28 0.42
2″ 51 51.0-53.0 0.138 3.50 410 1230 0.47 0.70
3″ 76 76.0-78.0 0.118 3.00 250 750 0.60 0.90
3″ 76 76.0-78.0 0.126 3.20 410 1230 0.70 1.05
4″ 102 102-104.5 0.110 2.80 200 600 0.72 1.08
4″ 102 102-104.5 0.138 3.50 250 750 0.87 1.30
4″ 102 102-104.5 0.142 3.60 300 900 0.94 1.40
4″ 102 102-104.5 0.189 4.80 610 1830 1.27 1.90
5″ 125 125-127.5 0.142 3.60 150 450 1.21 1.80
6″ 152 154-157 0.126 3.20 150 450 1.27 1.90
6″ 152 154-157 0.149 3.80 250 750 1.41 2.10
6″ 152 154-157 0.165 4.20 300 900 1.68 2.50
6″ 152 154-157 0.228 5.80 410 1230 2.28 3.40
6″ 152 154-157 0.216 5.50 610 1830 2.14 3.20
8″ 204 204-207 0.149 3.80 200 600 1.94 2.90
8″ 204 204-207 0.157 4.00 250 750 2.28 3.40
8″ 204 204-207 0.165 4.20 300 900 2.35 3.50
8″ 204 204-207 0.165 4.20 410 1230 2.68 4.00
10″ 254 256-259 0.165 4.20 200 600 2.68 4.00
10″ 254 256-259 0.177 4.50 250 750 3.02 4.50
10″ 254 256-259 0.197 5.00 300 900 3.69 5.50
