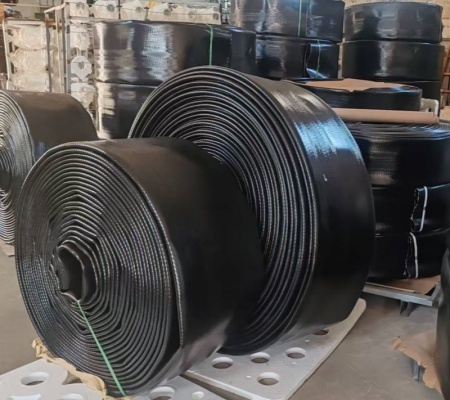

TPU Lay Flat Hose



 TPU layflat hose is a versatile and durable solution for transferring water and other liquids in various applications. Made from thermoplastic polyurethane, this type of hose is lightweight, flexible, and easy to handle, making it ideal for irrigation, dewatering, and other fluid transfer tasks. TPU layflat hose is known for its high abrasion resistance, low coil memory, and ability to maintain its shape even under high pressure. With its smooth inner surface, it allows for efficient flow and minimal friction loss. Overall, TPU layflat hose is a reliable and cost-effective choice for any water transfer needs.

TPU Layflat Hose


Decription：

TPU Layflat Hose is made from extruded thermoplastic polyester based polyurethane (TPU) with excellent wear & tear properties. It’s reinforced with circular woven filament polyester yarn.

TPU Layflat Hose Structure

Tube & Cover: TPU

Reinforcement: Woven polyester jacket

Temperature: -55℃ to +80℃ (-67℉ to +176℉)

Application: Fire fighting, shipping, petroleum, chemical industry, agriculture and mining.

The “extrusion through-the-weave” production method offers a very strong bonding between cover and lining and firmly encapsulating the woven polyester. Its has excellent wear, gouging, and tear resistance.

It is also resistant to many chemicals and its superior construction makes it light in weight and permits it to be made in very long length even in larger diameters. The interlocked reinforcement weaves ensure the extension in hose length is minimized when the hose is pulled or pressurized – which also keeps “snaking” of the hose to a minimum.

TPU Hose Features

  • Acid, alkali and corrosion resistant

  • Abrasion and oil resistant

  • Cold and small flow resistant

TPU Layflat Hose Advantages

  • Standard color black, other colors on request

  • Individual marking available

  • Binding with international couplings available on request

  • Other diameters on request

  • Standard lengths 100m and 200m

TPU Layflat Hose Specification

Specifition：

ID Tolerance Wall Thickness Service
Pressure 		Minimum
Burst Pressure 		Weight
inch mm mm inch mm psi psi lbs/ft kg/m
2″ 51 51.0-53.0 0.071 1.80 250 750 0.28 0.42
2″ 51 51.0-53.0 0.138 3.50 410 1230 0.47 0.70
3″ 76 76.0-78.0 0.118 3.00 250 750 0.60 0.90
3″ 76 76.0-78.0 0.126 3.20 410 1230 0.70 1.05
4″ 102 102-104.5 0.110 2.80 200 600 0.72 1.08
4″ 102 102-104.5 0.138 3.50 250 750 0.87 1.30
4″ 102 102-104.5 0.142 3.60 300 900 0.94 1.40
4″ 102 102-104.5 0.189 4.80 610 1830 1.27 1.90
5″ 125 125-127.5 0.142 3.60 150 450 1.21 1.80
6″ 152 154-157 0.126 3.20 150 450 1.27 1.90
6″ 152 154-157 0.149 3.80 250 750 1.41 2.10
6″ 152 154-157 0.165 4.20 300 900 1.68 2.50
6″ 152 154-157 0.228 5.80 410 1230 2.28 3.40
6″ 152 154-157 0.216 5.50 610 1830 2.14 3.20
8″ 204 204-207 0.149 3.80 200 600 1.94 2.90
8″ 204 204-207 0.157 4.00 250 750 2.28 3.40
8″ 204 204-207 0.165 4.20 300 900 2.35 3.50
8″ 204 204-207 0.165 4.20 410 1230 2.68 4.00
10″ 254 256-259 0.165 4.20 200 600 2.68 4.00
10″ 254 256-259 0.177 4.50 250 750 3.02 4.50
10″ 254 256-259 0.197 5.00 300 900 3.69 5.50
12″ 306 306-311 0.165 4.20 150 450 2.81 4.20
12″ 306 306-311 0.197 5.00 200 600 3.48 5.20
14″ 356 356-360 0.189 4.80 150 450 4.36 6.50
16″ 406 406-410 0.197 5.00 100 300 4.56 6.80
16″ 406 406-410 0.212
Size，
